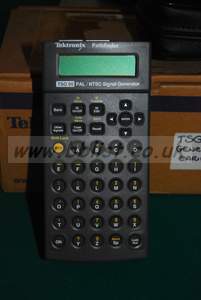

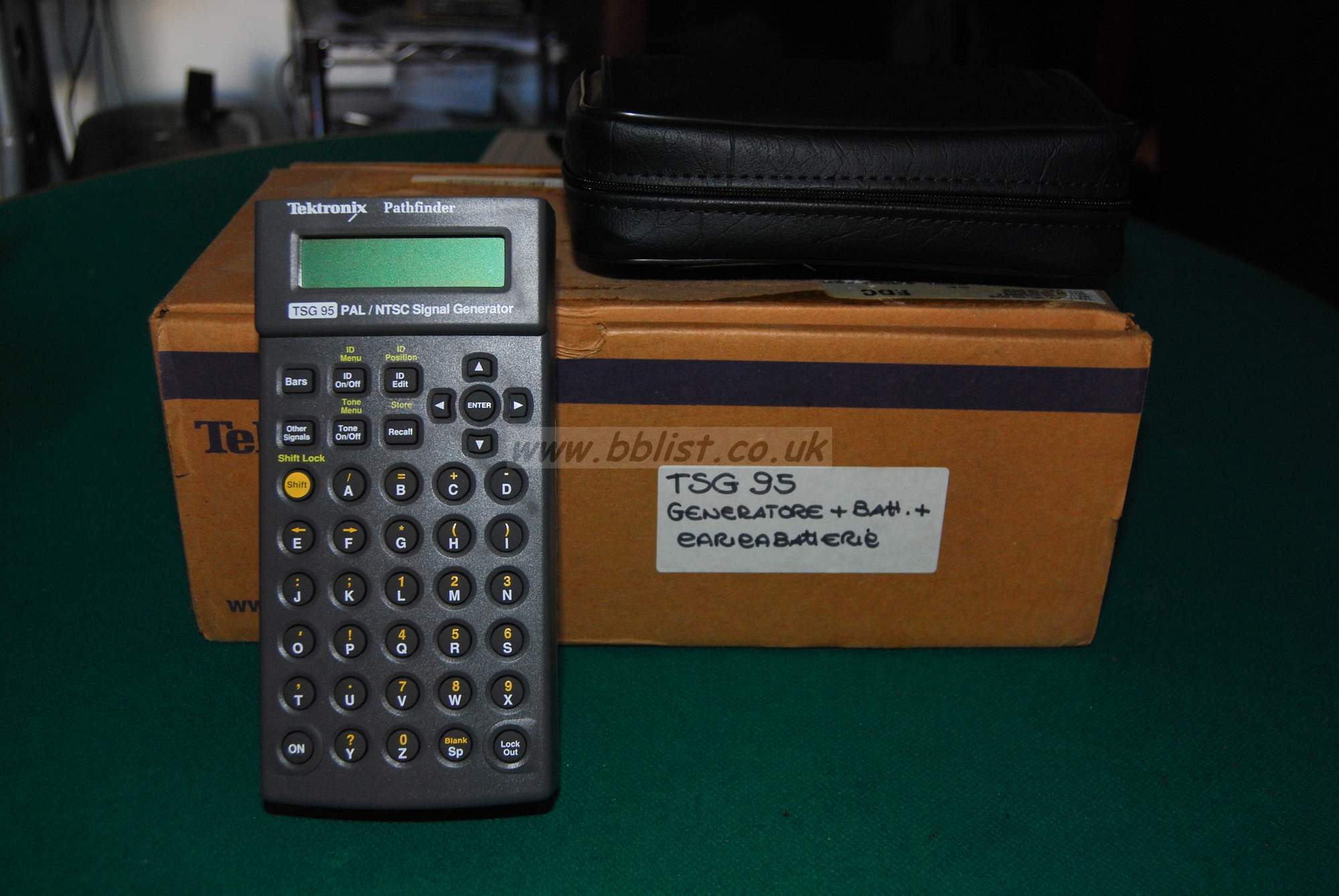

TSG95 PAL/NTSC Signal Generator

Handheld signal generator for use in installation and maintenance of analogue composite video systems. The TSG95 is an ideal companion for the WFM91 Waveform Monitor. Powered by a.c. adaptor (supplied) or 8 x AA batteries (not supplied).

PAL Test Signals

75% and 100% colour bars (full field or over red)
Convergence
Pluge
Red, blue or green field
Multi-burst
60% Reduced line sweep
5 Step grey scale
Matrix of CCIR 17, CCIR 18, CCIR 330, CCIR 331, Sin (x)/x, 15kHz square wave, shallow ramp, UK ITS 1, UK ITS 2
Safe area
Field square wave
Bounce
75Ω BNC output

Character ID

Stores up to eight commonly used identification messages for instant output, each can contain up to 2 lines of 16 characters
Up to 4 messages may be sequenced in a continuous loop
Easy to create using the alpha numeric keypad

User Presets

Stores and recalls up to 4 front panel configurations, including menu selections, current text messages and cycle information.

Balanced Stereo Audio Signals

Thirteen audio tone frequencies (50Hz to 20kHz)
Four tone levels (-10, 0, +4, +8 dB)
Selectable audio click sequence to aid left and right channel identification
2 off 3 pin XLR socket outputs
